Ceramic Elastic Modulus Testing Machine Quasi Static Bending Modulus Tester

Name: Ceramic Elastic Modulus Testing Machine Quasi Static Bending Modulus Tester
Brand: Lonroy
Price: 1 USD

Quality Ceramic Elastic Modulus Testing Machine Quasi Static Bending Modulus Tester for sale

Brand Name : Lonroy

Model Number : LRTM

Certification : Includes Calibration Certification

Place of Origin : China

MOQ : 1

Price : Negotaible

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 200

Delivery Time : 5-8 work days

Packaging Details : wooden package

Voltage : 220V, 50 Hz

Specimen Size : ≤120 × 100 mm/820 × 100 mm

Maximum Load : 0~10000 N

Deformation Accuracy : Relative error ≤ ±0.5%

Warranty : 1 Year

Contact Now

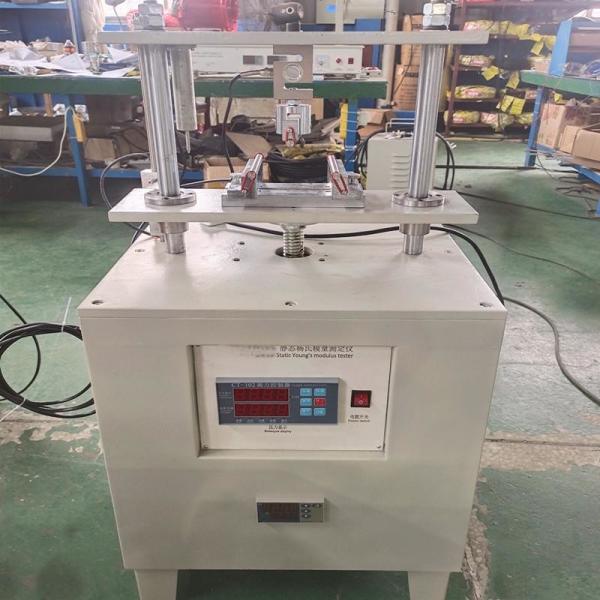

LRTM Ceramic Elastic Modulus Testing Instrument Quasi-Static Bending Modulus Tester

1.Description:

This instrument measures the elastic modulus of non-metallic materials such as ceramics using the three-point bending loading method. It consists of an electric loading system, a deformation measurement system, a pressure measurement system, and a computer control and measurement system. The deformation measurement system uses high-precision displacement sensors to measure micro-strains; the pressure measurement system uses high-precision pressure sensors and digital pressure gauges to measure; the three measurement and control systems are controlled by a computer, enabling fully automatic testing, data processing, and printing out of the test report.
2.Standard:
This instrument complies with GB/10700-2006 "Test Method for Elastic Modulus of Fine Ceramics - Bending Method", as well as GB/T23266-2009 "Detection of Elastic Limit of Ceramic Plates". It is applicable for the determination of the static elastic modulus of non-metallic materials such as engineering ceramics and fine ceramics at room temperature.

3.Technical Parameter

Parameter	Specification
Maximum Load	0~10000 N
Force Measurement Accuracy	Relative error ≤ ±0.15%
Deformation Measurement Range	±5 mm
Deformation Accuracy	Relative error ≤ ±0.5%
Loading Deformation Rate	0~1 mm/min (arbitrarily adjustable)
Specimen Size	≤120 × 100 mm (Standard, according to GB/T 10700-2006); or 820 × 100 mm (according to GB/T 23266-2009); (Other sizes can be customized as per user requirements)
Voltage	220V, 50 Hz
