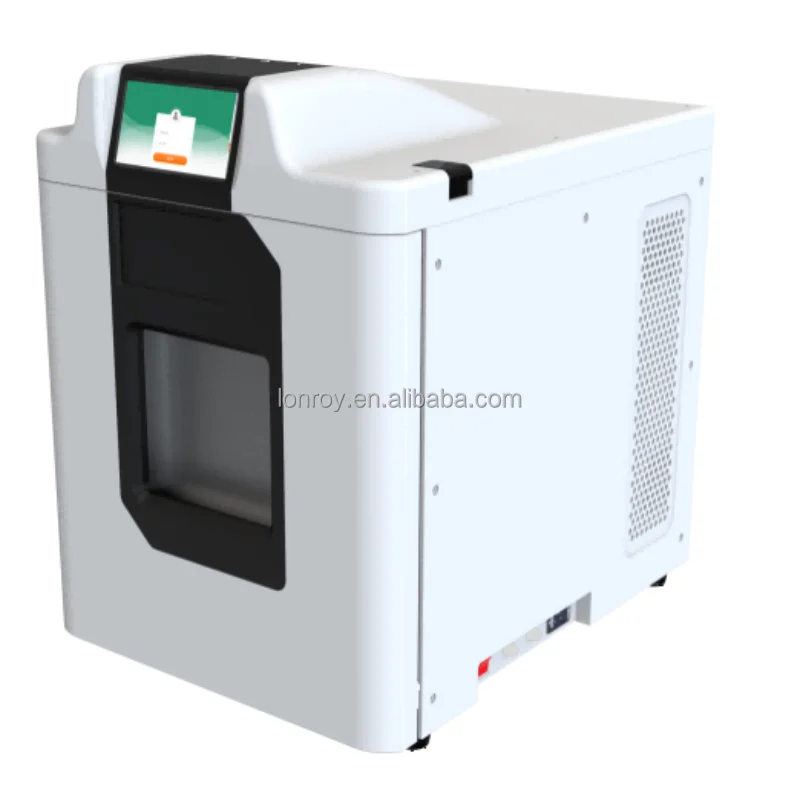

Automatic Intelligent Microwave Digestion Instrument Smart Touch LCD Screen Microwave Digester Microwave Digestion Machine

Name: Automatic Intelligent Microwave Digestion Instrument Smart Touch LCD Screen Microwave Digester Microwave Digestion Machine
Brand: LONROY
Price: 1 USD

Quality Automatic Intelligent Microwave Digestion Instrument Smart Touch LCD Screen Microwave Digester Microwave Digestion Machine for sale

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 3200 W

Voltage : 220 V

Protection Class : IP56

Dimensions : 580*680*720mm

Net Weight : 65 KG

Humidity Range : 15-80% RH

Microwave Source : 2450 MHz

Microwave Output Power : 2000 W

Display Screen : 7-inch touch LCD

Microwave Oven Cavity : 65L stainless steel

Temperature Resistance : Outer: ≥500°C, Inner: ≥300°C

Pressure Resistance : Outer: ≥18 MPa, Inner: ≥4 MPa

Temperature Measurement : -50 - 310°C

Control Accuracy : ±0.1°C

Cooling Time : 200°C to 60°C in 15 minutes

Contact Now

Automatic Intelligent Microwave Digestion Instrument Smart Touch LCD Screen Microwave Digester Microwave Digestion Machine

Product Description

Innovation points

1. The LR-A343 intelligent microwave digestion instrument adopts a safe and sealed patented design, eliminating the loss and leakage of elements caused by exhaust, ensuring accurate and reliable elemental analysis results for AA, ICP, ICP-MS, etc.

2. Professional electromagnetic protection design, meeting high-end microwave leakage protection standards

3. With an ergonomic design, it features a large color touch screen and a freely controllable color graphic interface. The real-time imaging technology offers a high-end experience, fully embodying the convenience and comfort of modern laboratories. The beyond intelligent microwave digestion instrument adopts the world's first technology to enhance the parallelism of the microwave digestion instrument's reaction.

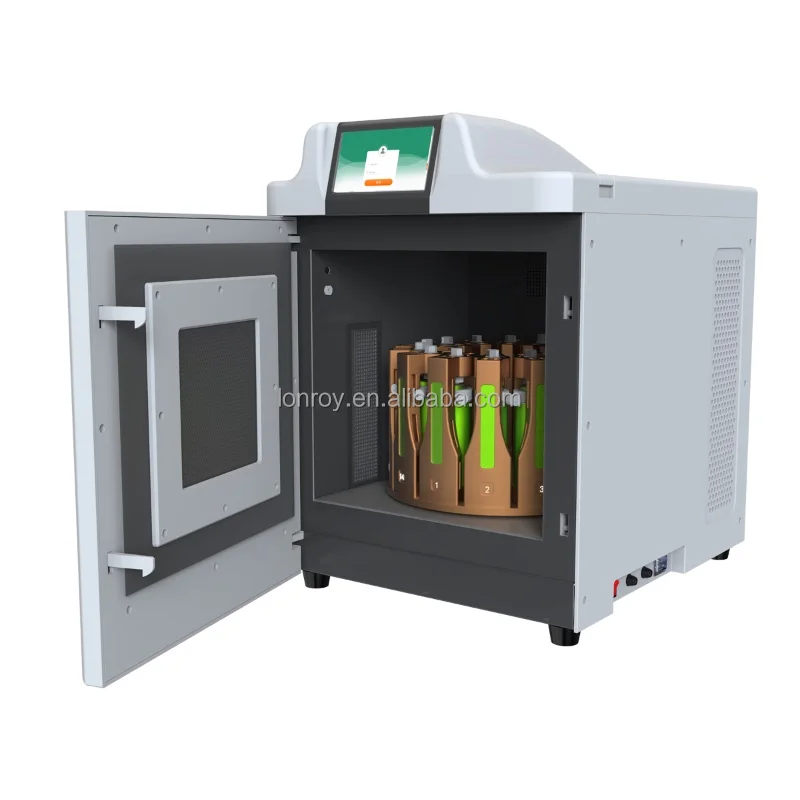

4. It adopts the industrial-grade microwave oven cavity design standard, with the inner cavity coated with multiple layers of PFA (modified polytetrafluoroethylene) to prevent long-term corrosion by strong acids.

Specifications and parameters of the dissolving tank

Reactor tank name 6 pressure-resistant tanks

Reactor tank model ZG06

Batch processing volume 6

Magnetic stirring Yes

Inner tank material TFM

Explosion-proof outer tank material PEEK

Reduce the structure of the rotor frame High-strength integrated frame of the rotary table

Reaction tank volume 100ml

Automatic Intelligent Microwave Digestion Instrument Smart Touch LCD Screen Microwave Digester Microwave Digestion Machine

Technical Specification

Power Supply	220-240 VAC, 50/60 Hz, 15 A
Microwave Source	2450 MHz, dual magnetron high-energy microwave field emission
Overall Installed Power of the Machine	3200 W
Microwave Output Power	2000 W, microwave non-pulsed continuous automatic frequency conversion control
Display Screen	Extra-large 7-inch touch LCD screen
Software System	Equipped with ARM chips and the ZG operating system
Microwave Oven Cavity	65L large-capacity 316L stainless steel cavity, with multi-layer anti-corrosion PFA Teflon coating on both the inside and outside
Temperature Control System	Real-time detection, control and display of the temperature and temperature curves in all reaction tanks. Outer tank of digestion tank: temperature resistance ≥ 500°C; Inner tank of digestion tank: temperature resistance ≥ 300°C
Design of Safety Explosion-proof Doors	Eight-layer steel structure with a self-elastic explosion-proof buffer design (AUT-relief structure), featuring dual safety protection (electronic and mechanical)
Pressure Control System	The G-pressure control system continuously monitors the pressure in all reaction tanks in real time. In case of overpressure, it automatically adjusts or stops microwave emission and triggers an alarm
Pressure Measurement System	Piezoelectric pressure sensor. Outer tank of digestion vessel: pressure resistance ≥ 18 MPa; Inner tank of digestion vessel: maximum pressure ≥ 4 MPa, volume ≥ 100 mL
Temperature Measurement System	High-precision optical fiber temperature sensor. Temperature measurement range: -50 - 310℃; Control accuracy: ±0.1℃; Display accuracy: ±1℃
Video Surveillance System	The operation status of the digestion tanks inside the furnace cavity can be monitored in real time through the internal camera (optional)
Full Tank Temperature Monitoring System	Full tank temperature monitoring. Temperature measurement range: 0 - 300℃; Control accuracy: ±0.1℃
Passive Protection System for Full Tank Pressure	Adopts a top-mounted safety pressure relief device (security) design, which automatically releases pressure quantitatively and directionally when overpressure occurs
External Network Interface (Optional)	USB, RS-232
Outer Tank of Sample Reaction Vessel	PEEK material explosion-proof outer tank
Furnace Cavity Exhaust System	High-power corrosion-resistant axial flow fan, with turbulent high-efficiency air cooling; the temperature drops from 200℃ to 60℃ in just 15 minutes
Working Environment Temperature/Humidity	0-40 °C / 15-80% RH
Overall Physical Dimensions and Net Weight of the Machine	580680720mm (Width x Depth x Height), 65 KG
