Polarized Light Microscopic Melting Point Instrument High Accuracy Section Samples Melting Point Determination Machine

Brand Name : LONROY

Place of Origin : Guangdong, China

MOQ : 1

Power : 120W

Voltage : 220 V

Dimensions : 185*85*28mm

Weight : 1kg

Field of Vision : 2mm

Slide Specification : 76 * 19 * 1 mm

Cover Glass Specification : 15 * 15 * 0.5 mm

Temperature Range : Room Temperature - 400°C

Heating Rate : 0.1 - 20℃/Min

Temperature Resolution : 0.1°C

Temperature Control Accuracy : ±0.3℃

Display Mode : TFT high-definition true-color screen

Data Interface : USB, RS232, SD, Network Port

Working Distance : At least 7mm

X-Y Table Movement : 13mm

Contact Now

Polarized Light Microscopic Melting Point Instrument High Accuracy Section Samples Melting Point Determination Machine

Product Description

Improvement in efficiency and innovation points

1. The closed furnace body ensures stable temperature.

2: Precise heating rate ranging from 0.1 to 20.0 with an infinitely adjustable range;

3: Utilize TFT true-color touch screen.

4. Can be magnified by more than 200 times

Application fields

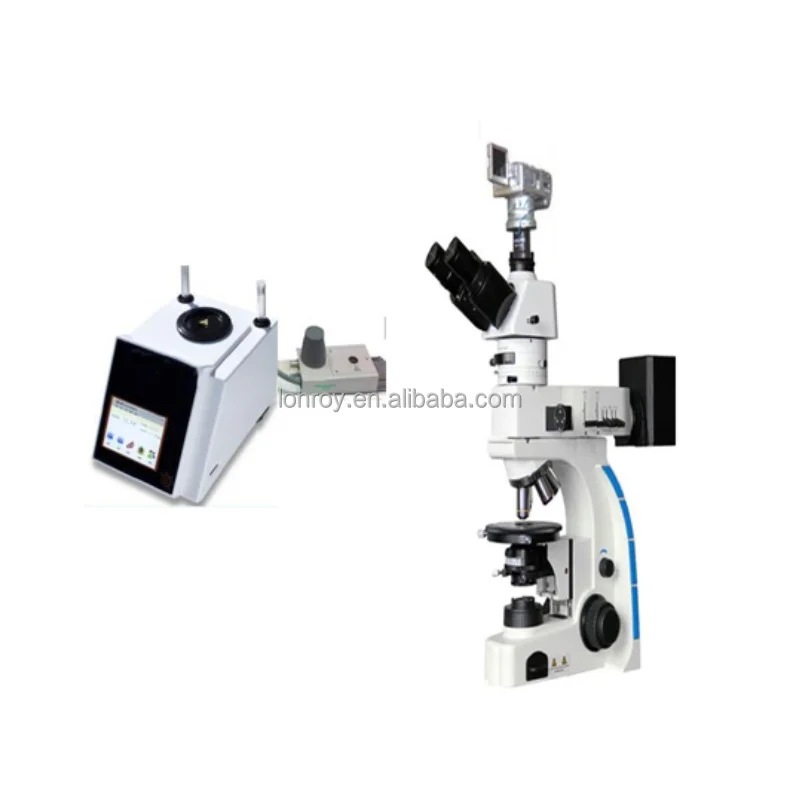

The LR-A346 polarized light micro melting point instrument is widely used in fields such as medicine, chemical engineering, synthetic fibers, biology, mineralogy, criminology, etc. By using a microscope with a digital eyepiece, it can not only be used with ordinary eyepieces, but also apply advanced color CCD to study and measure the thermal properties of substances through televisions or displays (provided by the customer). It can be used not only for the melting point determination of trace samples and section samples, but also for thermodynamic research in biotechnology.


Polarized Light Microscopic Melting Point Instrument High Accuracy Section Samples Melting Point Determination Machine

Technical Specification

Temperature Range

Room Temperature - 400°C

Heating Rate

(0.1 - 20)℃/Min, 200-step infinitely adjustable continuously variable speed

Temperature Resolution

0.1 degree Celsius

Temperature Control Accuracy

±0.3℃

Display Mode

TFT high-definition true-color screen

Data Interface

USB, RS232, SD, Network Port

Slide/Cover Glass Specification

76 * 19 * 1 mm, 15 * 15 * 0.5 mm

Photo/Video Function

Take photos / record videos (with dimension measurement function)

Protective Gas

Sealed box protective gas (nitrogen)

Field of Vision

2mm

Working Distance of the Sample Lens

At least 7mm

X-Y Table

Capable of moving an additional 13mm

Dimensions (Length * Width * Height) / Weight

185*85*28mm / 1kg

User Management

None

Number of Method Sections

1 section

Experimental Method Storage Capacity

20 sets

Result Storage Capacity

100 entries

Optional Accessories

Biological microscopes, polarizing microscopes (optional accessories)
