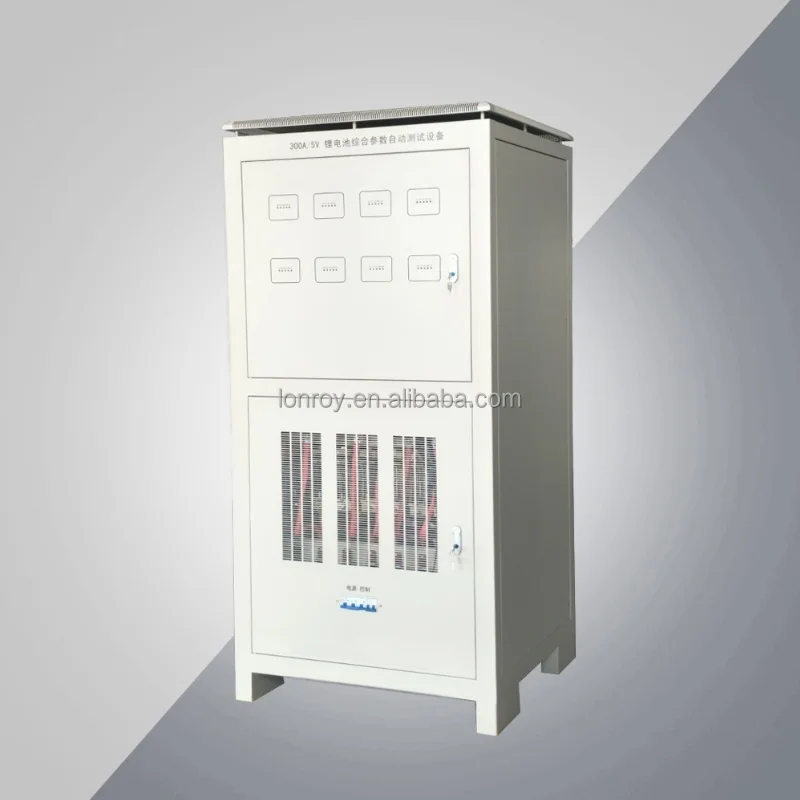

300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing

Brand Name : Lonroy

Place of Origin : China

MOQ : 1

Voltage : 220 V, 380 V

Protection Class : IP56

Precision : ± 0.1%FS or ±0.5%

Stability : ±0.2%FS

Stage time range : 0.1 second - 1000 hours

Work temperature : 0℃ to 40℃

Charging method : Automatically

Display mode : Touch screen display or upper computer display

Resolution : 16-bit AD

Timing accuracy : ±10 seconds/24 hours

Stage setting range : 1 - 200 stages

Data recording interval : ≥100ms

Storage temperature : -20℃ to +70℃

Cooling method : Air-cooled

Environmental humidity : ≤85%

Certification : ISO ASTM CE

Price : Negotaible

Packaging Details : Wooden package

Delivery Time : 5-8 work days

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 200

Contact Now

Lithium Battery Integrated Parameter AutoTesting Equipment 300A5V 8L Direct Current Internal Resistance Test Machine

Product Description

Introduction

The battery testing equipment can meet the charging and discharging tests, pulse charging and discharging tests, DCIR (direct current internal resistance) tests, cycle life tests, and rate charging and discharging tests of single batteries and module batteries for electric vehicles, electric bicycles, energy storage batteries, etc. It is mainly applied in various research institutions, universities, power battery manufacturing enterprises and new energy vehicle manufacturers.

Features

It features multiple working modes: constant voltage charging, constant current charging, constant power charging, constant current discharging, constant power discharging, constant resistance discharging, resting, and cyclic operation mode (more working modes can be customized, please consult). When setting multi-stage programs, the operation modes can be freely combined, integrating discharging, charging, and cyclic charging and discharging. One device can meet multiple testing requirements.

Multiple safety protection functions: It has battery reverse connection alarm, overcurrent shutdown, and pause function during operation. During the testing process, if any abnormality is detected in the entire battery pack or individual cells, or if the tester malfunctions, the tester will automatically terminate the test to protect the battery. It can record the operating status when the power is cut off and automatically resume operation after power is restored.

Equipped with professional software: Test record data can be conveniently exported as an Excel file with the specified data columns, ensuring that the format of the exported or printed data columns matches the original record. Users can select the required columns to export data for easy organization of experimental data.

300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing

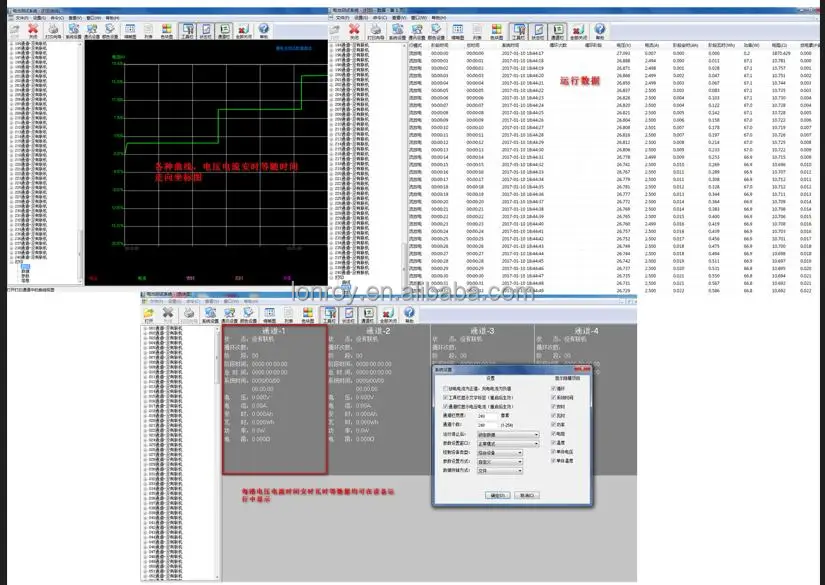

(Software Interface)

Built-in calibration function: The instrument is equipped with a voltage and current calibration correction function, which can calibrate and correct the measured values to ensure measurement accuracy.


Lithium Battery Integrated Parameter AutoTesting Equipment 300A5V 8L Direct Current Internal Resistance Test Machine

Technical Specification

Number of output channels of the equipment

* Road (Can be customized)

Charging method

Automatically

Display mode

Touch screen display or upper computer display

Voltage

Voltage

Scope

Charging

*V-*V (customizable)

Discharge

*V-*V (customizable)

Precision

± 0.1%FS or ±0.5%

Resolution

16-bit AD

Electric current

Current range

0-*A (the charging and discharging current ranges can be different and can be customized separately)

Precision

± 0.1%FS or ±0.5%

Resolution

16-bit AD

Power

Total output power

Determined according to equipment specifications

Single channel output power

Determined according to equipment specifications

Stability

±0.2%FS

Time

Time display resolution

0.1 second

Timing accuracy

±10 seconds/24 hours

Range of stage time setting

0.1 second - 1000 hours

Range of stage setting

1 - 200 stages

Data recording

(Setting can be done in stages)

Time interval

≥100ms

Voltage variation

≥0.1%FS

Current variation

≥0.1%FS

Work mode

Constant current charging

Voltage cutoff, time cutoff, capacity cutoff, temperature cutoff, etc.

Constant voltage charging

Current cutoff, time cutoff, capacity cutoff, temperature cutoff, etc.

Constant power charging

Voltage cutoff, current cutoff, time cutoff, capacity cutoff, temperature cutoff, etc.

Standby

Time cutoff, voltage cutoff, etc.

Constant current discharging

Voltage cutoff, time cutoff, capacity cutoff, temperature cutoff, etc.

Constant voltage discharging

Current cutoff, time cutoff, capacity cutoff, temperature cutoff, etc.

Constant power discharging

Voltage cutoff, current cutoff, time cutoff, capacity cutoff, temperature cutoff, etc.

Constant resistance discharging

AC380V, -5% to +10%, 50Hz ± 1Hz, three-phase five-wire system

Work environment

Working power supply

or AC220V, -5% to +10%, 50Hz ± 1Hz

Work environment temperature

0℃ to 40℃

Storage temperature

-20℃ to +70℃

Ventilation

Good ventilation, no corrosive gases

Cooling method

Air-cooled

Environmental humidity

≤85%

PC operating system

Windows 7, Windows 10 and above versions

300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing300A5V 8L Lithium Battery Test Machine with Precision ±0.1%FS for Direct Current Internal Resistance Testing
